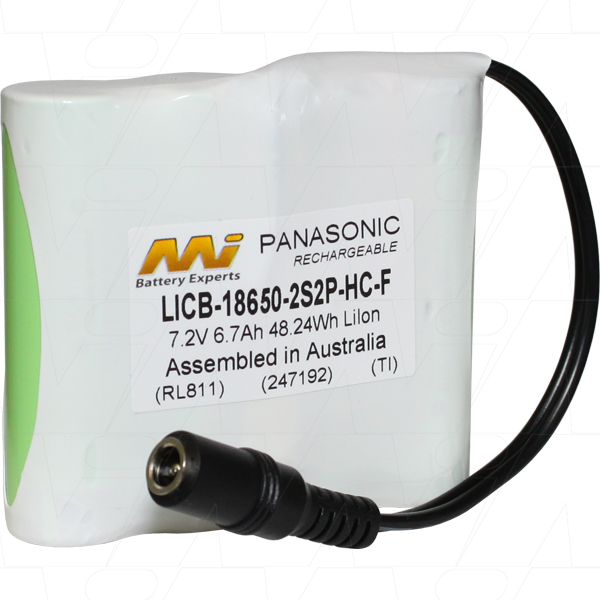

7.2V 6.7Ah High Capacity LiIon Battery with CE180 2.1mm DC Jack

$99.00 $89.00

Manufacturer: Master

Product Information

Chemistry Lithium Ion
Voltage 7.2V
Nominal Capacity 6.5Ah
Maximum Continuous
Discharge Current
10000mA
Brand Mi Battery Experts
Termination Connector
Width 74mm
Height 69mm
Length/Breadth/Depth 20mm
Weight 202g
Comments





Component Specifications
This battery pack assembly has been manufactured with the following key components. The links in this table go to the related web pages for each component for more comprehensive information
Cell Brand and model Panasonic NCR18650BF
Connector CE180 (polarity - center positive)
Protection Circuit Module MIPCM-2SXP10A







This product is part of our 'off the shelf' rechargeable lithium battery Design-In solutions range. The range provides products using cells from the best manufacturers and incorporating the highest quality safety components assembled using cutting edge knowledge and experience.

Battery Cell Variations
It's important to note whilst the products listed are our standard range we can vary the product specification to the customers requirements. Cells in alternative capacities and other properties such as high drain use can be engineered into a customers design. For alternative cell options please follow one of the following links

Lithium Ion Cylindrical Cells

Lithium Ion Prismatic Cells

Lithium Iron Phosphate Cells

Rechargeable Lithium Safety Protection Circuits
The maximum discharge current of the battery pack on this page is limited by the safety circuit. Safety circuits with different properties can be applied on request. For information on the safety circuits, more commonly known as a Protection Circuit Module (PCM) please click the following links:
 Protection Circuit Information Sheet Lithium Ion Protection Circuits Lithium Iron Phosphate Protection Circuits

Connector Variations
Alternative connector options are also available via this link: Connector Assemblies

Charger Options
A full range of appropriate chargers are ready to fit most of our solutions range. Follow these links to view the ranges:
Lithium Ion Battery Chargers Lithium Iron Phosphate Battery Chargers Custom Built Charger Options

Rechargeable Lithium Cells Safety Information Summary
  • Do not attempt to charge these batteries using chargers for nickel based batteries or any charger not specifically designed for rechargeable lithium technology.
  • This cell is manufactured for use in a battery pack assembly. It is not intended for use without a protection circuit. For equipment designed to use individual cells a protection circuit can be incorporated.
  • MI's current range of protected lithium ion cells can be viewed on this page.
  • Single unprotected cells are available to recognised customers. An indemnity waiver may be required for supply to take place. For safety information please read this safety precaution.
  • Lithium ion cells can be assembled into single or multi-cell battery packs by authorised pack assembly centres such as our company that have been approved for safety circuit assembly and Lithium Ion pack design.

Custom Battery Pack Application Work Sheet
For battery pack design enquiries please contact us with your requirements. If you already have some parameters please click here for a Battery Application work sheet & email it to us.

For full specifications and a 2DD depiction of the product on this page please click on the datasheet links at the bottom of the text fields.

Product Code: LICB-18650-2S2P-HC-F
