$69.00

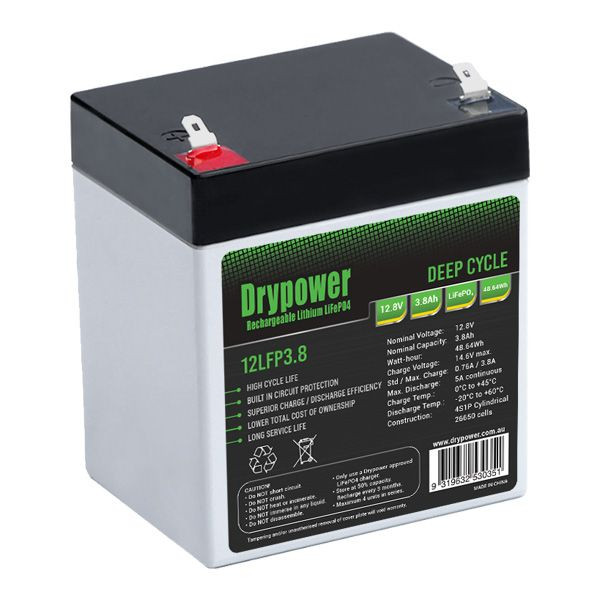

Description	12.8V 3.8Ah lithium iron phosphate (LiFePO4) rechargeable battery
Application	Caravan/RV/camping, mobility, marine, medical, solar, and more
Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage	12.8V
Nominal Capacity	3.8Ah
Watt Hour	48.6Wh
Maximum Continuous Discharge Current	5A
Termination	F1 (4.8mm Spade)
Size	4S1P
Width	70mm
Height	101mm
Length/Breadth/Depth	90mm
Weight	500g
Brand

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

4S1P-Cylindrical Construction

Specifications:

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 5A
• Charge voltage: 14.2V - 14.6V (14.2V recommended)
• Standard charge current: 0.76A
• Max. cont. charge current: 3.8A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 4S
• Parallel Connection: Nil

This product is certified to UN38.3 This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3

Long Service Life
>2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.

Robust Enclosure
Enclosed in IP5x (dust resistant) or IP6x (dust tight) case with closed loop terminals - suitable for harsh environments.

Lightweight
Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.

Wide Operating Temperature Tolerance
Suitable for use in a wider range of applications where ambient temperature is atypical: from -20°C up to +60°C.

High Energy Density - More Power p/kg
Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint.

Stable Chemistry & Built-in Circuit Protection
IEC & UN38.3 Safety Certified at cell level and integrated BMS protection to ensure safety and prevent damage.

Superior Charge & Discharge Efficiency
Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.

Fully Recyclable Battery
An environmentally friendly battery option, with no lead or calcium that can leak into the enviroment.

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

NON DG UN3480 LITHIUM ION BATTERIES - Contains cells/batteries exempted from ADG 7.7 & IMDG Code 2020 using Special Provision 188.

Important Information:

SERIES CONNECTION CAPABLE

This Drypower Lithium Iron Phophate battery can be connected in series up to 4S

No Parallel connection allowed

Product Code: 12LFP3.8
