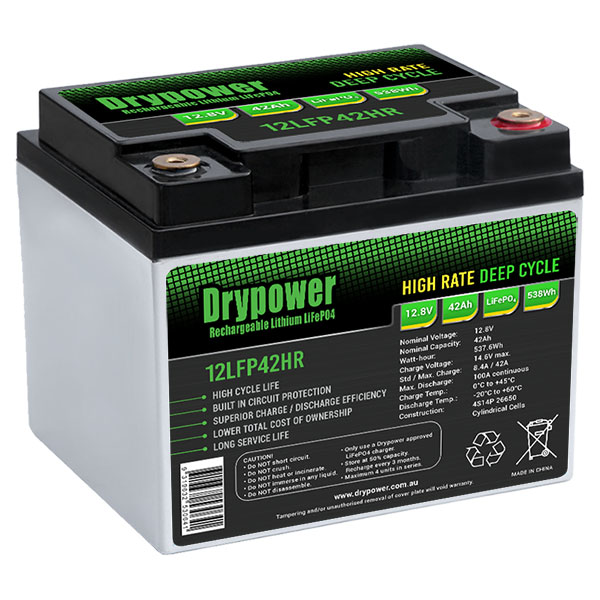

12LFP42HR - Drypower 12.8V 42Ah High Rate Lithium Iron Phosphate (LiFePO4)

$969.00 $819.00

(Quantity discounts available)

Manufacturer: DRYPOWER

Product Code: 12LFP42HR

Product Information

Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA)  and large Lithium batteries are an exception to this....extra freight charges may apply due to weight, transport method and delivery location. We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering.



Description

Drypower 12.8V 42Ah High Rate Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - 100A Max Discharge, Up to 4 in Series Capable
ChemistryLithium Iron Phosphate (LiFePO4)
Voltage12.8V
Nominal Capacity42Ah
Watt Hour538.0Wh
Maximum Continuous
Discharge Current
100A
TerminationF18 (M8 Bolt)
Size4S14P
Width166mm
Height169mm
Length/Breadth/Depth198mm
Weight6300g
Brand

Important Information:

SERIES CONNECTION CAPABLE

This Drypower Lithium Iron Phophate battery can be connected in series up to 4S

No Parallel connection allowed

12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

4S14P-Cylindrical Construction

HIGH RATE DISCHARGE MODEL -100A continuous discharge capable

Specifications:

  • Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
  • Max. continuous discharge current: 100A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 8.4A
  • Max. cont. charge current: 42A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Up to 4S
  • Parallel Connection: Nil


Suitable for:

  • Medical Trolleys & Patient Movers & Hoists
  • Deep Cycle SLA replacement (ie. Mobility that draws 100A or under)
  • AGV’s
  • Higher Drain Motor driven applications (such as portable pallet wrappers or Power Driven Davit’s)
  • Water Management (Flume Gates)

This product is certified to UN38.3

This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3

Click here to read the UN38.3 Information and FAQ's Document



FEATURES & BENEFITS
Long Service Life
>2000 cycles @100% DoD (25°C) to 80% of original capacity
- longer service life than SLA to reduce maintenance costs.
 High Energy Density - More Power p/kg
Higher total system capacity and superior utilisation (full
100% DoD) to reduce overall system size and footprint.
Robust Enclosure
Enclosed in IP5x (dust resistant) or IP6x (dust tight) case
with closed loop terminals - suitable for harsh environments.
 Stable Chemistry & Built-in Circuit Protection
IEC & UN38.3 Safety Certified at cell level and integrated
BMS protection to ensure safety and prevent damage.
Lightweight
Approx. 1/2 the weight (or less) of equivalent in SLA means
lower logistics costs and minimal OH&S concerns.
 Superior Charge & Discharge Efficiency
Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA)
for higher power usage and less downtime when charging.
Wide Operating Temperature Tolerance
Suitable for use in a wider range of applications where
ambient temperature is atypical: from -20°C up to +60°C.
 Fully Recyclable Battery
An environmentally friendly battery option, with no lead or
calcium that can leak into the enviroment.

Product Code: 12LFP42HR

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
4+$809.00
