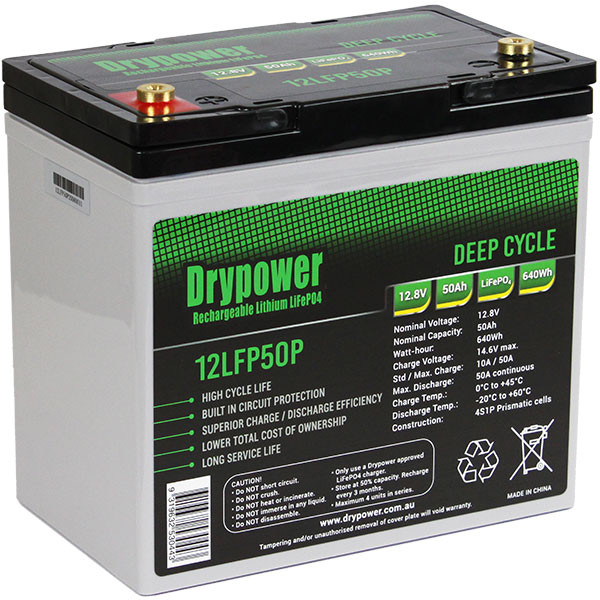

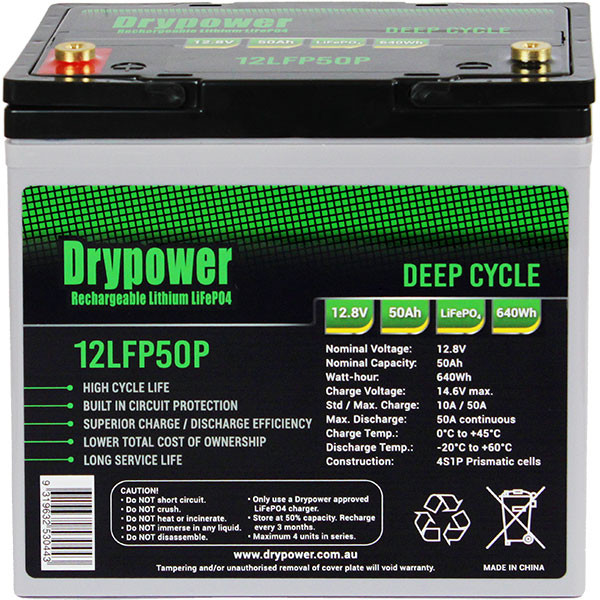

12LFP50P - Drypower 12.8V 50Ah Lithium Iron Phosphate (LiFePO4)

$419.00

Manufacturer: DRYPOWER

Product Code: 12LFP50P

Product Information

Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA)  and large Lithium batteries are an exception to this....extra freight charges may apply due to weight, transport method and delivery location. We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering..

DescriptionDrypower 12.8V 50Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery - Up to 4 in Series Capable
ChemistryLithium Iron Phosphate (LiFePO4)
Voltage12.8V
Nominal Capacity50Ah
Watt Hour640.0Wh
Maximum Continuous
Discharge Current
50A
TerminationF8 (M6 Bolt)
Size4S1P
Width138mm
Height210mm
Length/Breadth/Depth229mm
Weight5950g
Brand



12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

4S1P Prismatic Construction

Specifications:

  • Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
  • Max. continuous discharge current: 50A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 10A
  • Max. cont. charge current: 50A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Up to 4S
  • Parallel Connection: Nil
  • Important Information:

    SERIES CONNECTION CAPABLE

    This Drypower Lithium Iron Phophate battery can be connected in series up to 4S

    No Parallel connection allowed

  •

    This product is certified to UN38.3

    This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3

    Click here to read the UN38.3 Information and FAQ's Document

  • FEATURES & BENEFITS
    Long Service Life
    >2000 cycles @100% DoD (25°C) to 80% of original capacity
    - longer service life than SLA to reduce maintenance costs.
     High Energy Density - More Power p/kg
    Higher total system capacity and superior utilisation (full
    100% DoD) to reduce overall system size and footprint.
    Robust Enclosure
    Enclosed in IP5x (dust resistant) or IP6x (dust tight) case
    with closed loop terminals - suitable for harsh environments.
     Stable Chemistry & Built-in Circuit Protection
    IEC & UN38.3 Safety Certified at cell level and integrated
    BMS protection to ensure safety and prevent damage.
    Lightweight
    Approx. 1/2 the weight (or less) of equivalent in SLA means
    lower logistics costs and minimal OH&S concerns.
     Superior Charge & Discharge Efficiency
    Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA)
    for higher power usage and less downtime when charging.
    Wide Operating Temperature Tolerance
    Suitable for use in a wider range of applications where
    ambient temperature is atypical: from -20°C up to +60°C.
     Fully Recyclable Battery
    An environmentally friendly battery option, with no lead or
    calcium that can leak into the enviroment.

Product Code: 12LFP50P
