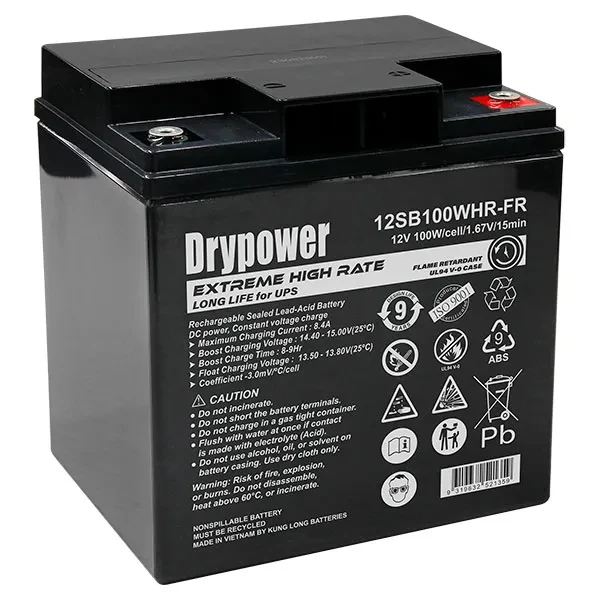

12SB100WHR-FR - 12V 28Ah 100W/Cell (15min) EXTREME High Rate Long Life battery

$169.00

Manufacturer: DRYPOWER

Product Code: 12SB100WHR-FR

Product Information



Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA)  and large Lithium batteries are an exception to this ....extra freight charges may apply due to weight, transport method and delivery location. We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering.



The new Drypower EXTREME High Rate Long Life series has been designed specifically for extreme high rate discharge & long design life in floating service applications.

12SB100WHR-FR 12V 100W/Cell down to 1.67V (15 Minute Rate)

Description12V 28Ah 100W/Cell (15min) EXTREME High Rate Long Life battery
ApplicationUPS, Data Centres, Telco Base Stations, Emergency Power Supplies, Security, Fire Alarms, Emergency Lighting
ChemistrySealed Lead Acid (SLA)
Voltage12V
Watts Per Cell100W
Nominal Capacity28Ah
TerminationF6 (M5 Bolt)
Width166mm
Height176mm
Length / Breadth / Depth125.5mm
Weight9600g

Suitable for applications such as:

  • UPS
  • Data Centres
  • Telco Base Stations
  • Emergency Power Supplies
  • Security
  • Fire Alarms
  • Emergency Lighting

Improvements to the batteries internal grid structure has resulted in improved energy density & a more stable performance wherever high power & short-term backup discharge are required.

Features & Benefits

  • LONG design life in float service
  • High rate discharge construction.
  • Low self-discharge rate and high reliability.
  • Complies with IMDG Special Provision 238.
  • Complies with IATA/ICAO Special Provision A67 for air transport.
  • Extreme energy density, small footprint, increased power (15% to 20% above standard high-rate batteries).
  • Uses Absorbed Glass Mat (AGM) technology, and the electrolyte is absorbed in fiberglass separators. The gas recombination efficiency is up to 99%.
  • UL94 V-0 Flame Retardant Case
  • 9-12 Year design life
  • Fully recyclable

Suitable replacement for: PHR-12100, XP12-100, UPS12-100 MR, HRL12110W, 12HX100, S12V120, PRC-1225, HFS12-155W-X

Product Code: 12SB100WHR-FR
