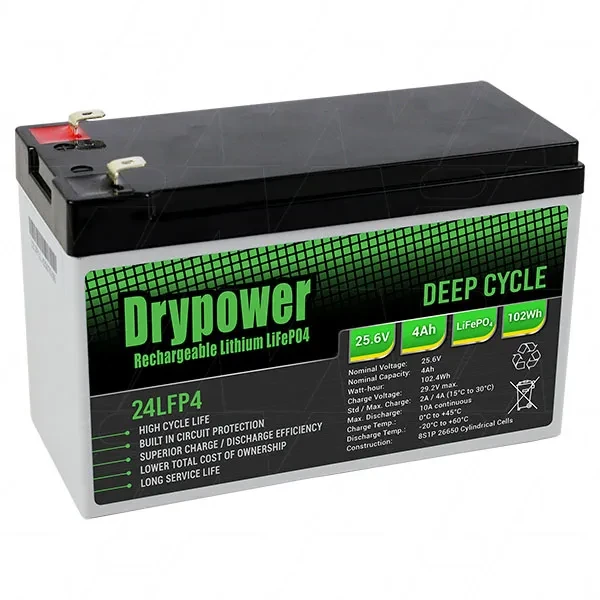

Drypower 24LFP4


Manufacturer: DRYPOWER

Product Code: 24LFP4

Product Information

24V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

8S1P Cylindrical Construction


DescriptionHigh power 25.6V 4Ah lithium iron phosphate (LiFePO4) rechargeable battery
ApplicationCaravan/RV/camping, mobility, marine, medical, solar, and more
ChemistryLithium Iron Phosphate (LiFePO4)
Watt Hour102.4Wh
Nominal Capacity4Ah
Maximum Continuous Discharge Current10A
TerminationF2 (6.35mm Spade)
Length / Breadth / Depth151mm


  • Cycle life: >1500 cycles (100% DoD to 80% of original capacity) @ 25°C
  • Max. continuous discharge current: 10A
  • Charge voltage: 28.4V - 29.2V (29.2V recommended)
  • Standard charge current: 2A
  • Max. cont. charge current: 4A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Up to 2S
  • Parallel Connection: Nil
  • This Drypower Lithium Iron Phosphate battery can be connected in series up to 2S.
    No parallel connection allowed.

Features & Benefits

Long Service Life
>2000 cycles @100% DoD (25°C) to 80% of original capacity - longer service life than SLA to reduce maintenance costs.

High Energy Density - More Power p/kg
Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint.

Robust Enclosure
Enclosed in IP5x (dust resistant) or IP6x (dust tight) case with closed loop terminals - suitable for harsh environments.

Stable Chemistry & Built-in Circuit Protection
IEC & UN38.3 Safety Certified at cell level and integrated BMS protection to ensure safety and prevent damage.

Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns.

Superior Charge & Discharge Efficiency
Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging.

Wide Operating Temperature Tolerance
Suitable for use in a wider range of applications where ambient temperature is atypical: from -20°C up to +60°C.

Fully Recyclable Battery
An environmentally friendly battery option, with no lead or calcium that can leak into the enviroment.

Product Code: 24LFP4
