FANSO ER14250BH Pulse Type - Replacement for Tekcell SB-AA02P

$12.00 $9.00

(Quantity discounts available)

Manufacturer: FANSO

Product Code: ER14250BH

Product Information

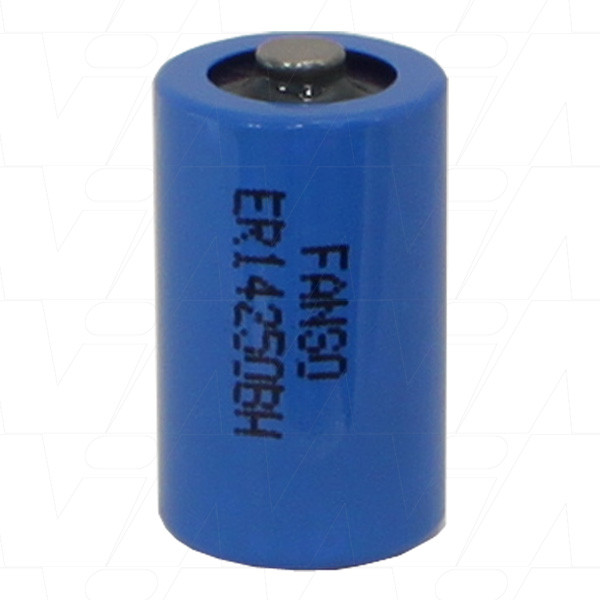

Fanso ER14250BH 1/2AA size 3.6V 1200mAh Lithium Thionyl Chloride Battery - Bobbin Type (Pulse)

ApplicationMemory Back Up (MBU)
ChemistryLithium Thionyl Chloride
Voltage3.6V
Nominal Capacity1.2Ah
Watt Hour4.3Wh
Maximum Continuous
Discharge Current
40mA
Brand
Size1/2AA
Width14.5mm
Height25.2mm
Weight9g
Inner Quantity50
Outer Quantity1000
Comments



ER14250BH primary lithium battery. This is the Pulse type battery. For the Memory Back Up (MBU) type battery, see ER14250H.

Wuhan Fanso high capacity range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +85ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • Non-restricted for transport.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.


Suitable for applications including:

  • Utility metering
  • Alarm and security devices
  • Memory backup power
  • Professinal electronics
  • GPS tracking system
  • Military system
  • Automotive electronics
  • Real-time clock



Store in a cool dry place not exceeding +30ºC.



Product Code: ER14250BH

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
20+$8.00
