FANSO ER14250H MBU type - Replacement for Tekcell SB-AA02M

$12.00 $7.00

(Quantity discounts available)

Manufacturer: FANSO

Product Code: ER14250H

Product Information

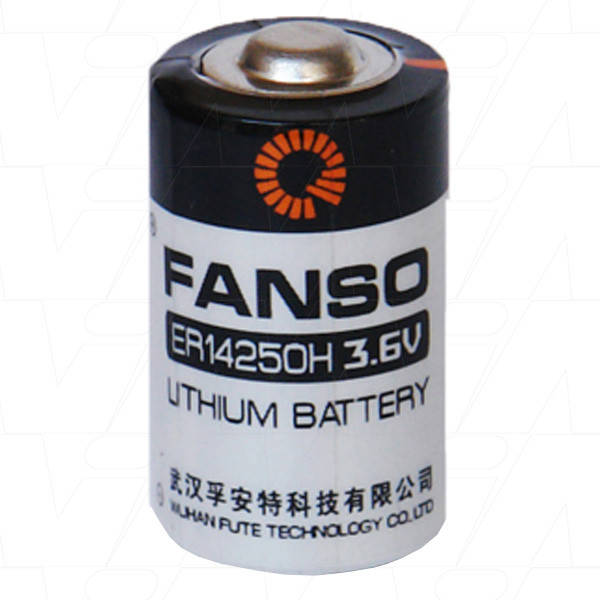

Fanso ER14250H MBU type  1/2AA size 3.6V 1200mAh Lithium Thionyl Chloride Battery - Bobbin Type

ApplicationMemory Back Up (MBU)
ChemistryLithium Thionyl Chloride
Voltage3.6V
Nominal Capacity1.2Ah
Watt Hour4.3Wh
Maximum Continuous
Discharge Current
25mA
Brand
Size1/2AA
Width14.5mm
Height25.2mm
Weight9g
Inner Quantity50
Outer Quantity1000
Comments



ER14250H primary lithium battery. This is the Memory Back Up (MBU) type battery. For the Pulse type battery, see ER14250BH.

Wuhan Fanso high capacity range.

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +85ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.


Suitable for applications including:

  • Utility metering
  • Alarm and security devices
  • Memory backup power
  • Professional electronics
  • GPS tracking system
  • Military system
  • Automotive electronics
  • Real-time clock


Store in a cool dry place not exceeding +30ºC.

Replacement for:

Allen Bradley 1771-DB Series B, 1772-LW Series B, 1772-LW Series C, 1772-LW Series D, 1772-LWP Series B, 1772-LWP Series C, 1772-LWP Series D, 1772-LX Series B, 1772-LX Series C, 1772-LX Series D, 1772-LXP Series B, 1772-LXP Series C, 1772-LXP Series D, B-2/16, B-2/17, C-2/16, C-2/17, D-2/16, D-2/17, DL20 DataLiner Series, MINI-PLC-2/02, MINI-PLC-2/05, MINI-PLC-2/16, MINI-PLC-2/17.
Siemens 100CPU, 100U, 102CPU, 95CPU, 95U, S5 series, SS-100U.
Modicon 984 series.

Replaces Allen Bradley 1770-XZ. Eternacell T04/41. Modicon 60-0576-000, 60-0576-100. Siemens 6ES5-980-0MA11.



Product Code: ER14250H

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
20+$6.50
