Golf Buggy / Caddy 12.8v 25.2Ah Lithium Battery & Charger Kit

$389.00 $369.00

Manufacturer: DRYPOWER

Product Code: 12LFP25TB

Product Information

Description

Drypower 12.8V 25.2Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery & Charger Kit for use with Golf Buggies
ApplicationGolf Buggy, Golf Pull Carts
ChemistryLithium Iron Phosphate (LiFePO4)
Voltage12.8V
Nominal Capacity25.2Ah
Watt Hour322.6Wh
Maximum Continuous
Discharge Current
30000mA
TerminationT Bar to Anderson PP + Lotus Seat
Size4S7P
Width128mm
Height102mm
Length/Breadth/Depth168mm
Weight2800g
Brand

12V Lithium Iron Phosphate battery, carry bag and charger kit. Ideal for golf buggy use 26650-4S7P Construction

Specifications:

  • Cycle life: >2000 cycles (80% DoD) @ 25Deg Celcius
  • Max. continuous discharge current: 30A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 5.0A
  • Max. cont. charge current: 5.0A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Nil
  • Parallel Connection: Nil

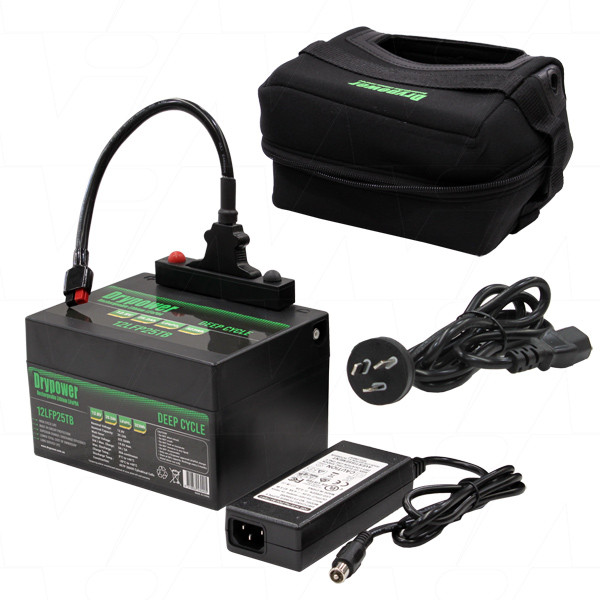

Kit comes with:

  • 12V 25.2Ah LiFePO4 Battery
  • Neoprene protective case
  • T-Bar to Anderson PP Output lead

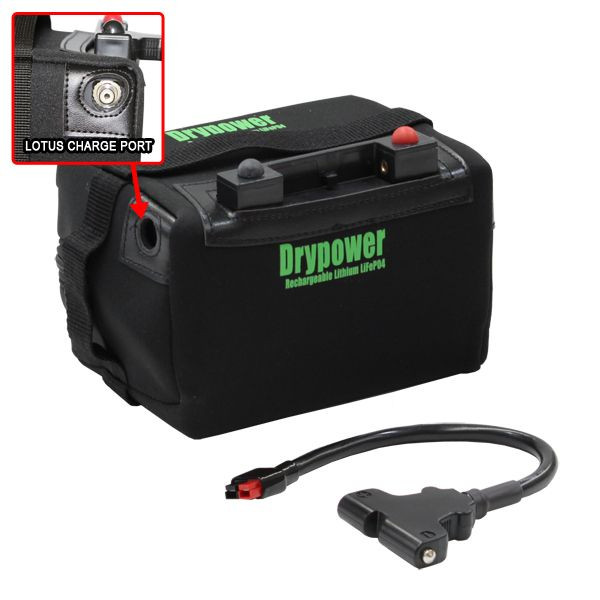

  • Battery charger with Lotus Plug (which allows you to recharge the battery without disconnecting or removing the battery from the cart)

This battery is a direct replacement for the discontinued IFR12-220TB-Y Kit



Important Information:

This Drypower Lithium Iron Phophate battery has been designed for use in Golf Buggies

No Series or Parallel connection allowed.

*See Product Manual or Datasheet for more information

Battery charger with Lotus Plug (which allows you to recharge the battery without disconnecting or removing the battery from the cart)

This battery is a direct replacement for the discontinued IFR12-220TB-Y Kit



    Why choose Drypower Lithium

     Key Features & Benefits

    High cycle life

    Provides up to 2000 cycles @ 80% DoD & Up to 5000 cycles @ 50% DoD, lowering the total cost of ownership compared to deep cycle lead acid batteries, AND after the 2000 cycles, Drypower Lithium batteries still provide 80% of the original rated capacity!

    Lightweight

    Drypower Lithium batteries provide more Wh/Kg while also being between 1/2 and 1/3 the weight of its SLA equivalent.

    Safe

    Inbuilt Protection Circuit Module protects against over-charging, over-discharging, over-current, external short circuit, incorrect charger use. Beware cheap imitations that lack a protection circuit or only use BMS cell balancing upon charging.

    Quickly recharge

    Capable of being charged at up to 1C max., you save time and increase productivity thanks to the superior charge/discharge efficiency. We recommend chargers with dedicated lithium battery profiles (see above for options)

    FAST discharge capable

    Unlike traditional lead acid batteries, Drypower Lithium rated capacities are independant of the discharge rates. The available capacity of a SLA battery is lower if discharged over 5 hours (compared to their 20hr rating). Drypower Lithium are rated at the 5 hour rate, meaning you could possibly even use a smaller capacity battery, saving you money and weight.

    Extreme heat tolerance

    Suitable for use in a wider range of applications where operating temperature is considered too high for SLA.

    Longer service life

    Low maintenance batteries with stable chemistry. Drypower Lithium batteries can last up to 8 times longer than AGM Lead Acid batteries meaning you change batteries less often, also reducing labour costs.

    Better storage

    Storage is not a problem thanks to extremely low self discharge (LSD) and no risk of sulphation.

    Product Code: 12LFP25TB
