$659.00 $520.00

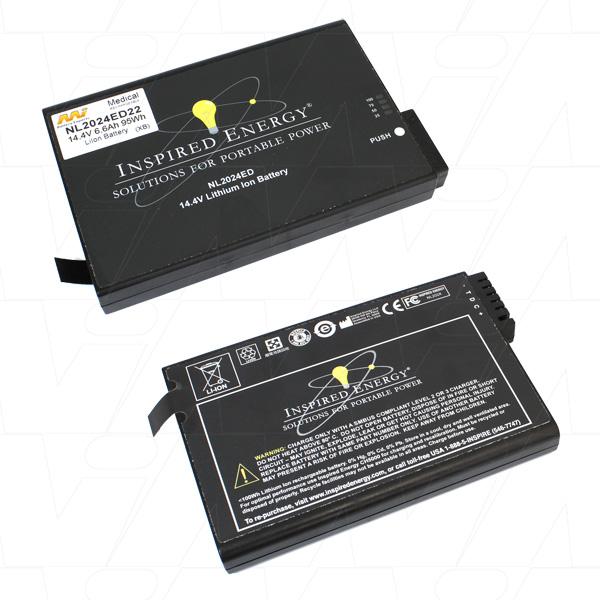

Description	Smart Medical Battery suitable for Phiilps Medical Systems Respironics EverGo and Hamilton Respirators
Application	Medical Equipment
Chemistry	Lithium Ion (LiIon)
Voltage	14.4V
Nominal Capacity	6.6Ah
Watt Hour	95.0Wh
Maximum Continuous Discharge Current	10000mA
Width	107.7mm
Height	21.7mm
Length/Breadth/Depth	167.7mm
Weight	652g
Brand

Replacement battery also suitable for Hamilton Ventilators.

Specifications:

• Voltage: 14.4V nominal; 16.8V max.
• Cutoff Voltage: 9.6V
• Capacity / Energy: 6.6Ah 95Wh
• Max. Continuous Discharge: 10A / 100W
• Communications: Fully SMBus rev 1.1 Compliant
• Data System: Fully SBDS rev 1.1 Compliant
• Mating Connector: Std. 5-position, 5mm centerline
• Fuel Gauge: 4-LED fuel gauge + push-button
• Recommended Battery Cavity: 22.5mm x 109mm cross section. The battery should be centered within this cavity.

Replaces discontinued model NL2024HD22.

Suitable For:

Compatible With:

Product Code: NL2024ED22
