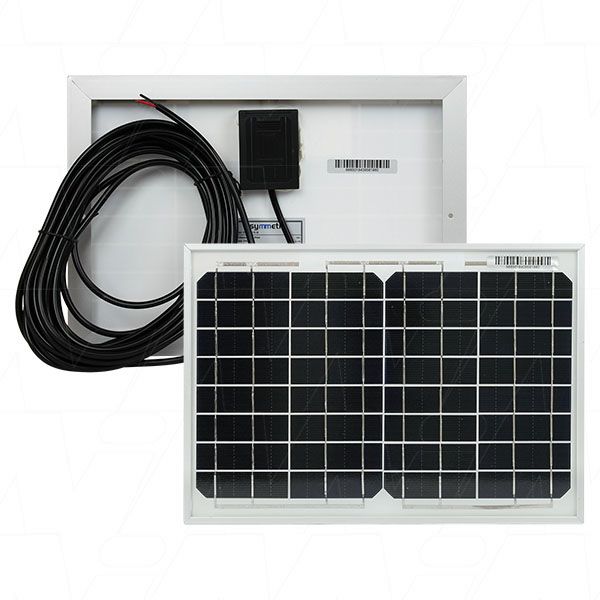

SY2-M10W-8M Symmetry 12V 10W 36 cells 0.55A IP65 Junction Box Monocrystalline Solar Module with 8m x 0.5mm2 dual core leads

$59.00

Manufacturer: Symmetry Solar

Product Code: SY2-M10W-8M

Product Information

Description

Symmetry 12V 10W 36 cells 0.55A IP65 Junction Box Monocrystalline Solar Module with 8m x 0.5mm2 dual core leads

Symmetry SY2 Series Solar Panels

The New 5 busbar Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems.

Available in a range of sizes from 5 watts up to 160 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.



  • 5 Busbar Cell - 5 busbar solar cells improve the efficiency of modules, offer a better aesthetic appearance.
  • High Efficiency - High module conversion efficiency, through innovative manufacturing technology.
  • Low-Light Performance - Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
  • Severe Weather Resilience - Certified to withstand - wind load (2400Pa) and snow load (5400Pa)
  • Durability Against Extreme Environmental Conditions - High salt mist and ammonia resistance certified by TUV.
  • 0-+5W Positive Tolerance - Detailed information in Electrical Specifications.
  •
Voltage12V
Size10W
Width235mm
Height25mm
Length/Breadth/Depth335mm
Weight1200g
Brand



Rated Power - Pmax (watts)  10W
 Max. Power Voltage VMP (V) 18.47V
 Max. Power Current IMP (A) 0.55A
 Open Circuit Voltage Voc (V) 22.63V
 Short Circuit Current Isc (A) 0.58A
 Max. System Voltage (V) 1000V
 Max Series Fuse Rating (A) 10A
 Voc Temp. Coefficients (V/°C) 0.290%
 Isc Temp. Coefficients (A/°C) +0.48%
 Temperature Range -40°C to +85°C
 Cell Technology Monocrystalline
 Number of cells 36
 Junction Box Yes, IP64 Rated
 Connectors / Output Cable 8m long x 0.5mm2 dual core leads UV Rated

Product Code: SY2-M10W-8M
