XTAR MC6 USB Input Automatic Six Channel 1-6 Cell Lithium Ion Battery Charger

$49.00 $45.00

Manufacturer: Xtar

Product Code: MC6

Product Information

DescriptionXTAR MC6 USB Input Automatic Six Channel 1-6 Cell Lithium Ion Battery Charger

The XTAR MC6 is a six channel (1-6 cells) fully automatic lithium ion battery charger. Powered by the included 5VDC input USB cable the charger includes the following features:

  • Six cell charger for charging 3.6V/3.7V lithium ion cell in sizes
    • Channels 2-5: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500, 26650,
    • Channels 1 and 6: Flat 32650.
  • Powered via USB input (includes 2 x USB cables)
    • USB input 1 provides power to channels 1 and 6
    • USB input 2 provides power to channels 2-5
    • Auto selects Charging Current:
      • CH1 and CH6 = 1.0A or 0.5A (low power)
      • CH2 - CH 5 = 0.5A or 0.2A (low power)
    • MC6 automatically reduces charging current to low power if power supply is insufficient

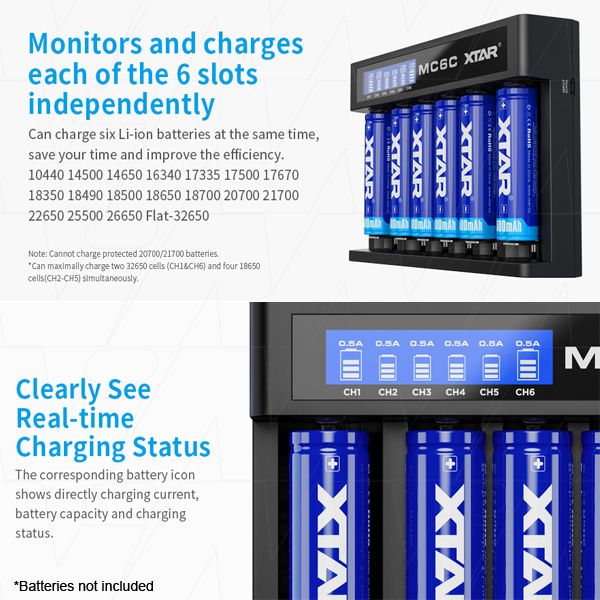

    • Connect USB input 1 and USB input 2 to charge up 6 cells simultaneously thanks to independent charging channels
  • Sliding contacts for firm contact with battery during charging
  • LCD display shows charging status and charging current indicators per channel

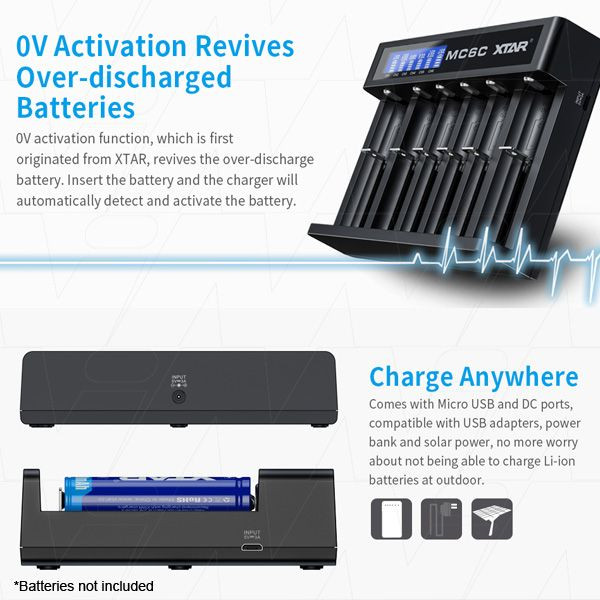

  • 0V discharged cell wake-up function
  • IC Temperature monitoring and heat dissipation design for 15°C max. rise.
  • Cut-off voltage 4.2V (±0.05V) cut-off current ≤120mA.
  • Overheat protection, reverse polarity and short circuit protection.

 MC6 package includes:

  • MC6 charger
  • 2 x USB cable
  • Manual and warranty card
