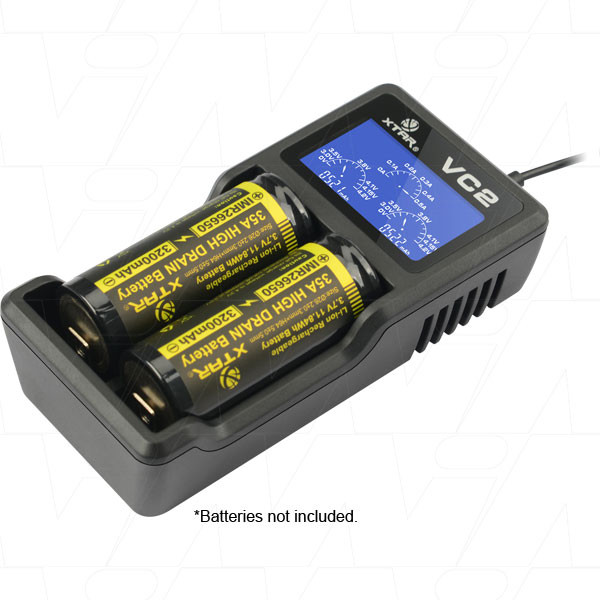

XTAR VC2 1-2 Cell Lithium Ion Battery Charger with USB Input and LCD Display

$35.00 $30.00

Manufacturer: Xtar

Product Information

DescriptionXTAR VC2 1-2 Cell Lithium Ion Battery Charger with USB Input and LCD Display
Width66mm
Height33mm
Length/Breadth/Depth131mm
Weight109g
Brand



USB powered 1-2 cell LiIon battery charger with LCD display.

  • Charge up to two 10440, 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 22650, 25500, 26650 3.6V/3.7V LiIon batteries.

    Charging Parameters:

    Input Power DC 5.0V 1.0A
    Max Constant Charging Current 500mA ±50mA
    Min Constant Charging Current 150mA ±50mA
    Cut-off Voltage (Output Volaage) 4.2V ±0.05V
    Auto Recharging Threshold Value Voltage     3.9V ±0.15V
    Cut-off Current ≤80mA













    Features:

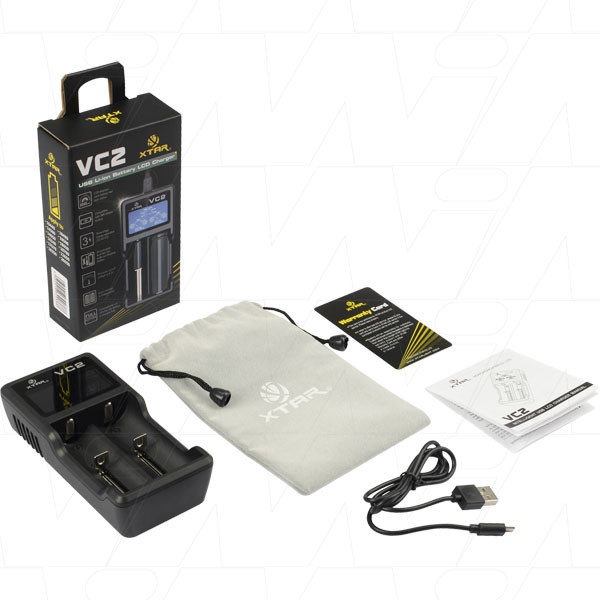

    • Input via included USB charging cable.
    • Independent channels with high definition LCD screen displays charging current, battery voltage and capacity.
    • Three stage charging: TC-CC-CV.
    • Automatically adjusts charge current from 0.15A to 0.5A.
    • Soft-start current and automatic shut off to avoid damaging batteries.
    • Screen will flash 3 times every 10 seconds when batteries are fully charged.
    • 0V low battery activation.
    • Automatically identifies faulty or NiMH batteries - displayed as 'NULL' on the LCD screen.
    • Overheat protection as well as effective heat dissipation design and fire resistant ABS shell construction.
    • Reverse polarity protection and short circuit protection.
    • 2 year warranty.

    Special Feature:

    By discharging the battery and recharging again, the VC2 is capable of identifying the real capacity left in the battery to ±5%.

    Product Code: VC2
