12.8V 100Ah 1280Wh 4S4P LiFePO4 Battery + SoC Indicator + M6 Terminals (Max 2S OR 8P) + IP20 Rating

$1,049.00 $899.00

Product Code: RV12100

Product Information

Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA)  and large Lithium batteries are an exception to this ....extra freight charges may apply due to weight, transport method and delivery location. We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering.

Description12.8V 100Ah 1280Wh 4S4P LiFePO4 Battery + SoC Indicator + M6 Terminals (Max 2S OR 8P) + IP20 Rating
ApplicationLead Acid Replacement, Marine Storage & Starting, Caravan/RV Storage, Industrial Market Applications, Deep Cycle
ChemistryLithium Iron Phosphate (LiFePO4)
Voltage12.8V
Nominal Capacity100Ah
Watt Hour1280.0Wh
Maximum Continuous
Discharge Current
100A
TerminationM6
Size4S4P
Width300mm
Height220mm
Length/Breadth/Depth173mm
Weight14050g
Brand

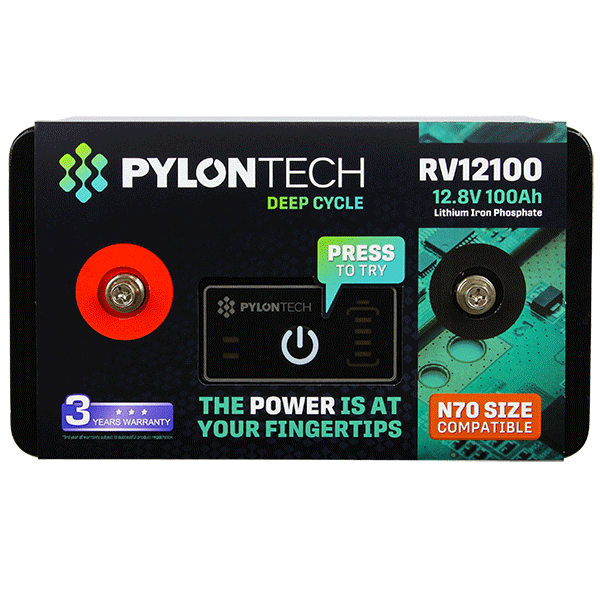

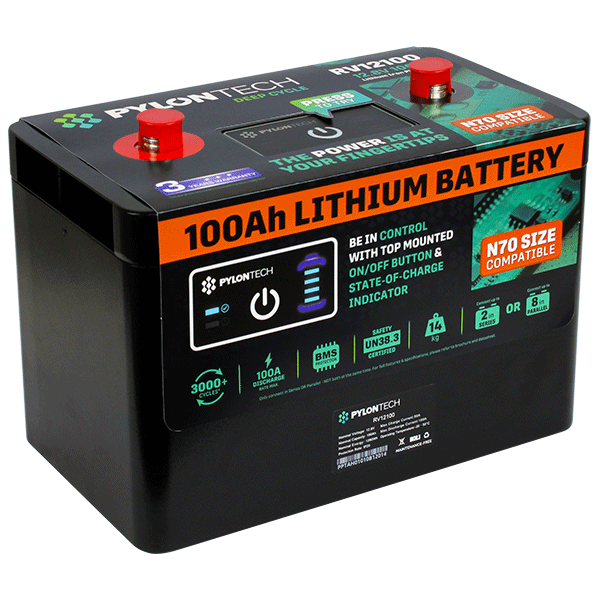

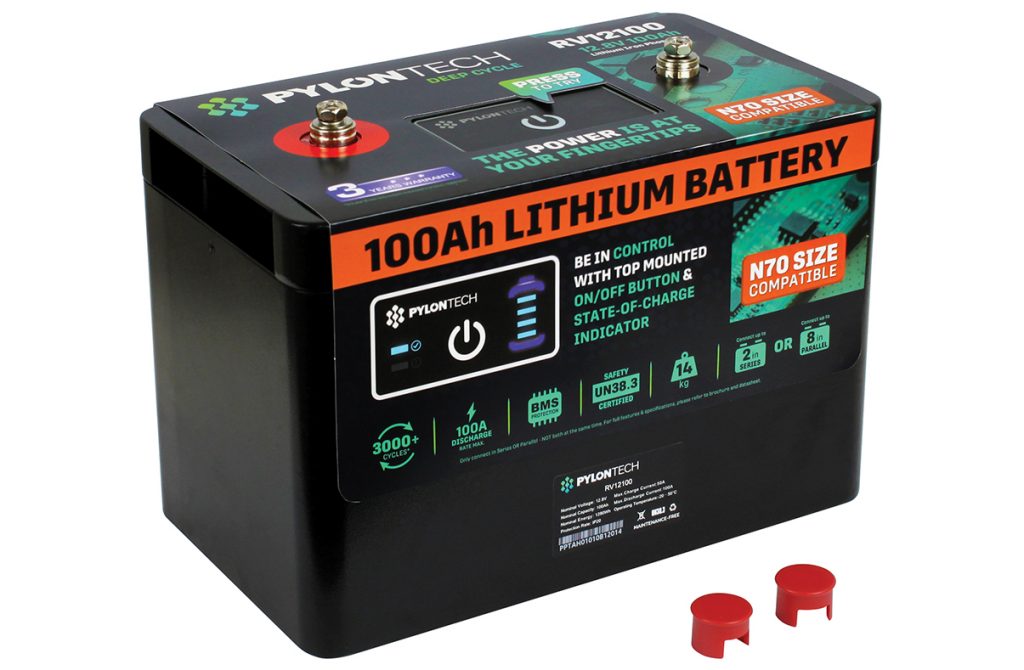

12V 100Ah Lithium Iron Phosphate battery with push button State-of-Charge indicator. Ideal for sealed lead battery replacement.

The Pylontech RV12V Series are the newly developed all-purpose lithium iron phosphate battery modules, designed for energy storage applications. With the cutting edge LFP (Lithium Iron Phosphate) cells, embedded BMS (Battery Management System) and mechanical design, Pylontech RV12V Series product provides inherent safety, extremly high reliability and zero maintenance.

Compared to the same capacity lead-acid based batteries, it has more than twice of the usable capacity, more than 3 times of the life cycle, but only about 40% of the weight. It is a perfect replacement for lead acid batteries used in Deep Cycle applications such as marine, RV, golf carts and solar storage.

The RV12100 is made from 4S4P combination of LiFePO4 Pouch type cells and can be used in any orientation unlike other batteries which may only be used with terminals facing upwards.

A unique feature with this battery is that it is "Array-Aware". That means it knows other batteries are on the bus and only turns on when it senses another battery in parallel or a charger.

Specifications:

Cycle life>3000 cycles (90% DoD) @ 25ºC
Max. continuous discharge current:100A
Charge voltage:14.2V - 14.6V (14.4V recommended)
Max. continuous charge current:50A
Discharge Cut-Off Voltage:10V
Operating Discharge temperature:-15°C to +50ºC
Operating Charge temperature:-0°C to +50ºC
Storage temperature:-20°C to +60ºC
State of Charge DisplayYes
Short Circuit ProtectionYes
Rating:IP20 Rating
Series* Connection Allowed:Up to 2S
Parallel*  Connection Allowed:Up to 8P (Max. continuous discharge current 0.5C when in Parallel)
Case StructureRugged mechanical design
SafetyUN38.3 Approved
Warranty3 Years
SizePerfect fit in N70 size battery box

 * No Connection of Series & Parallel Concurrently Allowed (Only either of the above)



Important Information:

SERIES CONNECTION CAPABLE

This Pylontech Lithium Iron Phosphate battery can be connected in series up to 2S OR up to 8P in parallel*





This product is certified to UN38.3

This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3

Click here to read the UN38.3 Information and FAQ's Document



Shipping restrictions

SHIPPING RESTRICTIONS APPLY

This lithium based product is classified as Class 9 DG (UN3480) where it contains more than 20Wh/cell or 100Wh/pack (Lithium Ion) and therefore cannot be sent by airfreight.

Transport via ROAD or SEA FREIGHT ONLY for this product.

Product Code: RV12100
