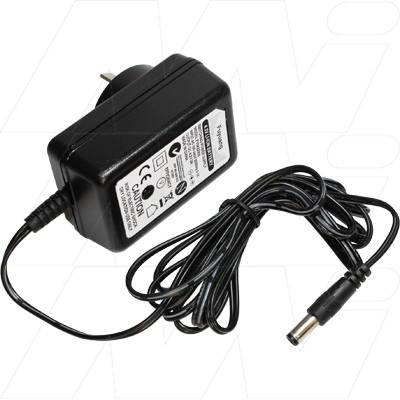

100-240VAC Wall Mount LiIon 1 Cell 4.2V Charger Output 2A + 2.1mm DC Plug

$35.00

Product Code: FY0422000

Product Information

Description100-240VAC Wall Mount LiIon 1 Cell 4.2V Charger Output 2A + 2.1mm DC Plug
BrandFuyuan
Width45mm
Height38.5mm
Length/Breadth/Depth70mm
Comments

100-240VAC input lithium ion battery charger for 1 cell 3.6V/3.7V packs.

Specifications:

  • Input Voltage: 100-240VAC 50/60Hz
  • Output Voltage: 4.2VDC
  • Output Current: 2A
  • Output Connection: 2.1mm I/D, 5.5mm O/D, centre positive, 1.8m 20AWG lead.
  • LED Indication:
    • Green – Power on and No Load
    • Red – Charging Battery
    • Green – Charge complete

NOTE: For indoor use only.

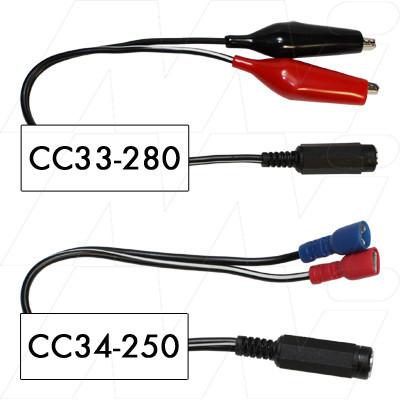

Extra Connector Adaptor:  For optional connector adaptors, see CC33-280  (female 2.1mm DC plug to alligator clips) or CC34-250 (female 2.1mm DC plug to female 6.35mm dual spade terminals). Connector adaptors sold separately.

Data SheetFY0422000.pdf

Can't read the data sheet? Try www.adobe.com
