2 cell lithium ion battery charger

$39.00

(Quantity discounts available)

Manufacturer: Xtar

Product Code: SP2

Product Information

Description100-240VAC (World Voltage) / 12VDC input independent channel 1-2 cell lithium ion battery charger.
BrandXTAR
Width61.8mm
Height34mm
Length/Breadth/Depth118mm
Weight96g
Comments

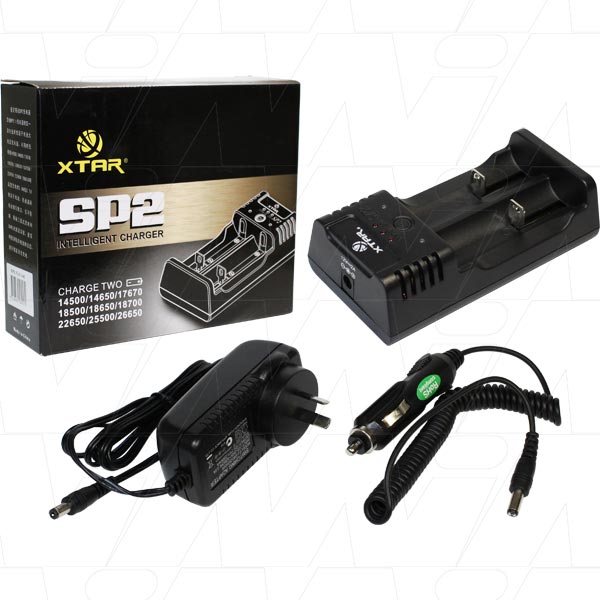

100-240VAC (World Voltage) / 12VDC input independent channel 2 cell lithium ion battery charger.

  • Comes with SAA, MEPS approved 100-240VAC (world voltage) to 12VDC input power adaptor plus 12VDC input cigarette light connection car plug.
  • Two cell charger for charging one or two 3.6V/3.7V lithium ion cells in sizes 14500, 14650, 17670, 18500, 18650, 18700 commonly used in LED torches & other devices, as well as 22650, 25500, 26650.
  •
  • Independent slide contacts are used for the longer cells. Extra screw in adaptors for shorter cells also available.
  • Selectable charging currents of either 500mA, 1000mA or 2000mA - (+/-10%).
  • Charge re-activation if cell voltage drops below 3.9V if cells left in the charger to keep ready for use.
  • Algorithm based TC/CC/CV charging system with reverse polarity & overcharge protection.
  • Input AC: 12V DC/2.0A
    0.5A CC Current:  500mA ±5%
    1A CC Current: 1000mA ±5%

    2A CC Current: 2000mA ±5%

    Cut-Off Voltage:  4.2±0.05V
    0.5A gear Cut-off Current/TC Current:  ≤100mA
    1A gear Cut-off Current/TC Current:  ≤150mA
    2A gear Cut-off Current/TC Current:  ≤220mA

2 year repair warranty (when used according to specification & in normal conditions).



Product Code: SP2

Quantity Discounts

You can save money on this item when you purchase several at a time. The table below shows the minimum quantities required to benefit from this offer, and how much they'll cost.


QuantityPrice per unit
10+$35.10
