$1,399.00

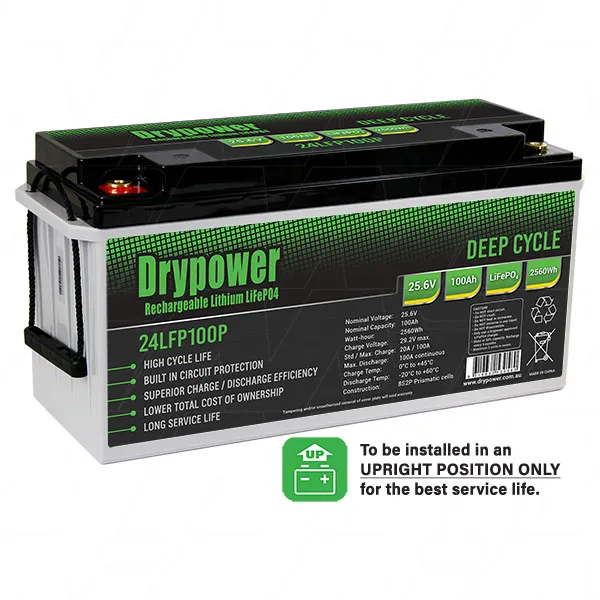

24V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

8S2P Prismatic Construction

IMPORTANT NOTE ON FREIGHT: Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA)  and large Lithium batteries are an exception to this ....extra freight charges may apply due to weight, transport method and delivery location. We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering.

Specifications:

• Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
• Max. continuous discharge current: 100A
• Charge voltage: 28.4V - 29.2V (29.2V recommended)
• Standard charge current: 20A
• Max. cont. charge current: 100A
• Operating Discharge temperature: -20°C to +60ºC
• Operating Charge temperature: +0°C to +45ºC
• Storage temperature: -20°C to +45ºC
• Operating Humidity (non-condensing): 5%-85%
• Series Connection: Up to 2S
• Parallel Connection: Nil

Important Information - Series Connection Capable

This Drypower Lithium Iron Phosphate battery can be connected in series up to 2S.
No parallel connection allowed.

*See Product Manual or Datasheet for more information

Upright Orientation Only

Drypower rechargeable Lithium batteries with prismatic LiFePO4 cells inside should only be used and mounted in an upright position for the best service life.

Product Code: 24LFP100P
