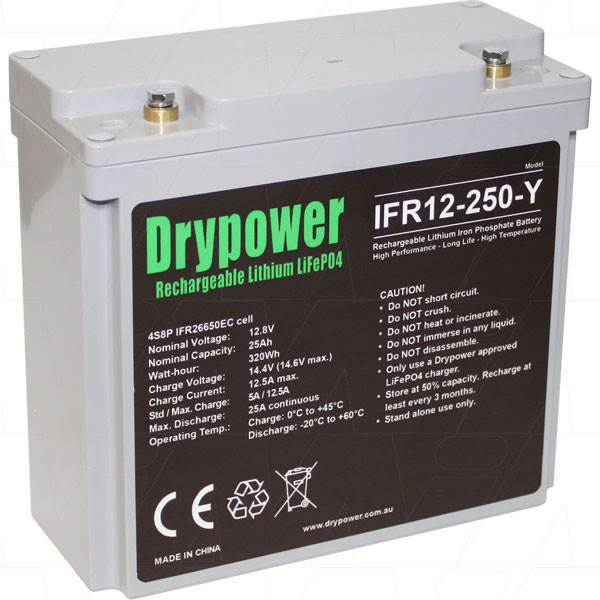

Drypower 12.8V 25Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery

$469.00 $399.00

Manufacturer: DRYPOWER

Product Code: IFR12-250-Y

Product Information

Our website applies a standard freight charge on most orders of $15.00 AUD including GST per delivery, regardless of quantity ordered. Heavy items such as Sealed Lead Acid (SLA) and large lithium batteries are an exception to this ....extra freight charges may apply due to weight, transport method and delivery location. We will calculate this and notify you of any extra freight charge after your order is placed. This extra freight charge is at cost- meaning we seek to make no profit on freight. Please feel free to contact us for a quote on freight prior to ordering.

ChemistryLithium Iron Phosphate
Voltage12.8V
Nominal Capacity25Ah
Typical Capacity25Ah
Watt Hour320.0Wh
Maximum Continuous  Discharge Current25000mA



TerminationM5 Bolt
Width76mm
Height168mm
Length/Breadth/Depth181mm
Weight3400g
Comments



12V Lithium Iron Phosphate battery. Ideal for sealed lead battery replacement

  • High capacity - rated at 5 hour discharge rate against lead acid rated at the 20 hour rate. For example a 26Ah lead acid battery (20 hour discharge rate) is approximately only 22Ah at the 5 hour discharge rate.
  • Low weight, approximately one third of a similar capacity lead acid battery.
  • Deep cycle, recharges up to 2000 times at 80% depth of discharge. That's 4-8 times better than a lead battery's cycle life dependant on usage conditions.
  • Fast Charge, able to accept higher charging currents all the way to charge termination. No float or trickle required.
  • Inbuilt Protection Circuit Module, protects against over-charging, over-discharging, over-current, external short circuit, incorrect charger use. Beware cheap imitations that lack a protection circuit or only use BMS cell balancing upon charging.



CAUTION: A dedicated Lithium Iron Phosphate charger is required. Do not use non appropriate chargers or chargers used for other battery chemistries.

We recommend using charger model:

FY1503000 (14.4V 3A)

FY1506000 (14.4V 6A)

In larger capacity models where a higher charge current is accepted, we also recommend charger model FY1509900 (14.4V 9.9A). A ring terminal to Anderson adaptor cable (part no. CE081E ) may be required for use with this charger. Adaptor cable is sold separately as optional extra.

Many sellers new to the lithium battery industry are claiming lithium iron phosphate batteries can be properly charged with lead battery chargers. This is incorrect. Please use chargers specifically designed for charging lithium iron phosphate batteries or batteries may not fully charge and/or battery life may be significantly reduced.

Additionally, this battery contains a lithium  battery protection circuit module (PCM). The PCM further enhances the safe usage of this battery in comparison to non-protected rechargeable lithium batteries. We recommend when this battery is used in multiple packs for series or parallel connections that individual chargers are used for each battery. Charging multiple battery arrays as a single battery pack may trigger the PCM inside one or more of the batteries that could lead to capacity miss-match in the array that could reduce performance of the complete battery pack array. Please consult us for further information and technical advice.

Product Code: IFR12-250-Y
