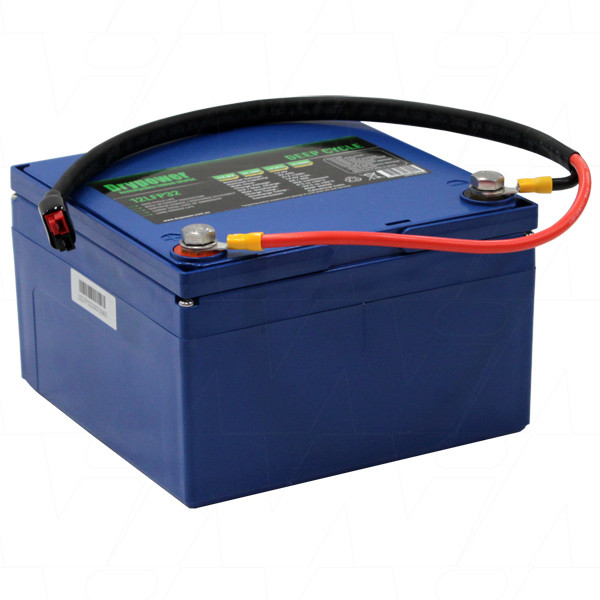

Drypower 12.8V 32.4Ah Lithium Iron Phosphate Rechargeable Lithium Battery & Lead Kit

$489.00 $399.00

Manufacturer: DRYPOWER

Product Code: 12LFP32

Product Information

DescriptionDrypower 12.8V 32.4Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery & Lead Kit
ChemistryLithium Iron Phosphate (LiFePO4)
Voltage12.8V
Nominal Capacity32.4Ah
Watt Hour414.7Wh
Maximum Continuous
Discharge Current
30000mA
TerminationF18 (M8 Bolt) + lead to Anderson PP Plug
Size4S9P
Width175mm
Height110mm
Length/Breadth/Depth175mm
Weight3600g
Brand

12V Lithium Iron Phosphate battery and Lead Kit. Ideal for golf buggy use

26650-4S9P Construction

Specifications:

  • Cycle life: >2000 cycles (80% DoD) @ 25Deg Celcius
  • Max. continuous discharge current: 30A
  • Charge voltage: 14.2V - 14.6V (14.2V recommended)
  • Standard charge current: 6A
  • Max. cont. charge current: 30A
  • Operating Discharge temperature: -20°C to +60ºC
  • Operating Charge temperature: +0°C to +45ºC
  • Storage temperature: -20°C to +45ºC
  • Operating Humidity (non-condensing): 5%-85%
  • Series Connection: Nil
  • Parallel Connection: Nil



Kit comes with:

  • 12V 32Ah LiFePO4 Battery
  • M8 to Anderson PP Connector lead
  • M8 Bolts x 2

This battery is a direct replacement for the discontinued IFR12-300-Y

NOTE: Do not use Lead Acid battery Charger. Recomended charger  -  Product Code: FY1509900 (9.9A charger.)

Why choose Drypower Lithium

 Key Features & Benefits

High cycle life

Provides up to 2000 cycles @ 80% DoD & Up to 5000 cycles @ 50% DoD, lowering the total cost of ownership compared to deep cycle lead acid batteries, AND after the 2000 cycles, Drypower Lithium batteries still provide 80% of the original rated capacity!

Lightweight

Drypower Lithium batteries provide more Wh/Kg while also being between 1/2 and 1/3 the weight of its SLA equivalent.

Safe

Inbuilt Protection Circuit Module protects against over-charging, over-discharging, over-current, external short circuit, incorrect charger use. Beware cheap imitations that lack a protection circuit or only use BMS cell balancing upon charging.

Quickly recharge

Capable of being charged at up to 1C max., you save time and increase productivity thanks to the superior charge/discharge efficiency. We recommend chargers with dedicated lithium battery profiles (see above for options)

FAST discharge capable

Unlike traditional lead acid batteries, Drypower Lithium rated capacities are independant of the discharge rates. The available capacity of a SLA battery is lower if discharged over 5 hours (compared to their 20hr rating). Drypower Lithium are rated at the 5 hour rate, meaning you could possibly even use a smaller capacity battery, saving you money and weight.

Extreme heat tolerance

Suitable for use in a wider range of applications where operating temperature is considered too high for SLA.

Longer service life

Low maintenance batteries with stable chemistry. Drypower Lithium batteries can last up to 8 times longer than AGM Lead Acid batteries meaning you change batteries less often, also reducing labour costs.

Better storage

Storage is not a problem thanks to extremely low self discharge (LSD) and no risk of sulphation.
