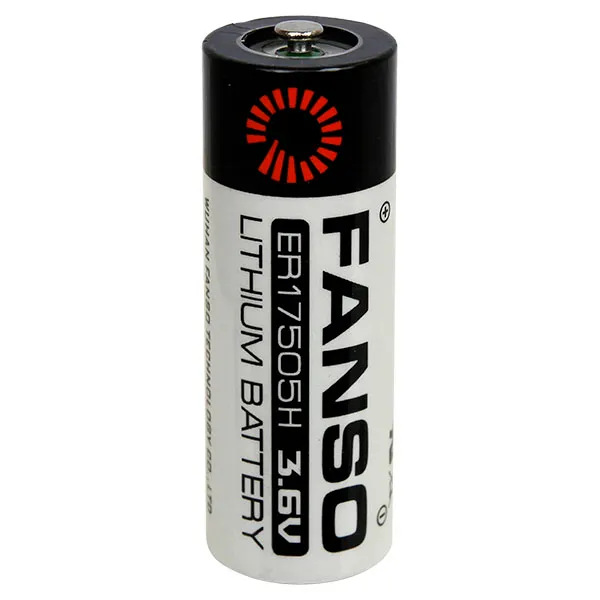

ER17505H FANSO A size 3.6V 3600mAh High Capacity Lithium Thionyl Chloride Battery - Bobbin Type

$14.00

Manufacturer: FANSO

Product Code: ER17505H

Product Information

ER17505H primary lithium battery.

DescriptionFanso ER17505H A size 3.6V 3600mAh High Capacity Lithium Thionyl Chloride Battery - Bobbin Type
ApplicationMemory Back Up (MBU)
ChemistryLithium Thionyl Chloride
Voltage3.6V
Watt Hour13.0Wh
Nominal Capacity3.6Ah
Maximum Continuous Discharge Current100mA
SizeA
Width17.5mm
Height50.5mm
Weight27g
Inner Quantity24

Features:

  • Long shelf life: self discharge rate less than 1% at 25°C.
  • High energy density (700Wh/kg).
  • Long operating life.
  • Stainless steel container and end caps.
  • Wide temperature range: -55ºC ~ +85ºC.
  • Hermetic glass-to-metal sealing.
  • Non-flammable electrolyte.
  • Compliant with IEC86-4 safety standard.
  • UL Component Recognition MH46165.
  • High and stable operating voltage.
  • Suitable for applications including:

  • Utility metering
  • Alarm and security devices
  • Memory backup power
  • Professional electronics
  • GPS tracking system
  • Military system
  • Automotive electronics
  • Real-time clock

Product Code: ER17505H
