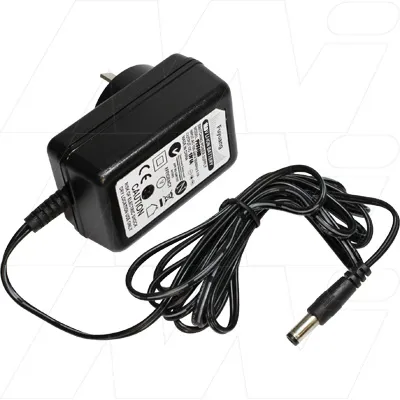

100-240VAC input lithium ion battery charger for 4 cell 14.8V packs.
Specifications:
- Input Voltage: 100-240VAC 50/60Hz
- Output Voltage: 16.8VDC
- Output Current: 1A
- Output Connection: 2.1mm I/D, 5.5mm O/D, centre positive, 1.8m 24AWG lead.
- LED Indication:
- Green – Power on and No Load
- Red – Charging Battery
- Green – Charge complete
NOTE: For indoor use only.
| Description | 100-240VAC wall mount LiIon 4 cell 16.8V charger output 1A + 2.1mm DC plug |
|---|
| Chemistry | Lithium Ion (LiIon) |
|---|
| Voltage | 16.8V |
|---|
| Size | 4S |
|---|
| Width | 45mm |
|---|
| Height | 38.5mm |
|---|
| Length / Breadth / Depth | 70mm |
|---|
Product Code: FY1701000-2.1mm
