LIBM-ESS252100 25.2V 100Ah LiIon Portable Energy Storage System Power Pack with Built-in BMS and State of Charge Indicator

$9,636.00

Manufacturer: Master

Product Code: LIBM-ESS252100

Product Information

Description25.2V 100Ah LiIon Portable Energy Storage System Power Pack with Built-in BMS and State of Charge Indicator
ChemistryLithium Ion (LiIon)
Voltage25.2V
Nominal Capacity100Ah
Watt Hour2520.0Wh
Maximum Continuous
Discharge Current
2A
Width445mm
Height725mm
Length/Breadth/Depth271mm
Weight36000g
BrandENEPOWER

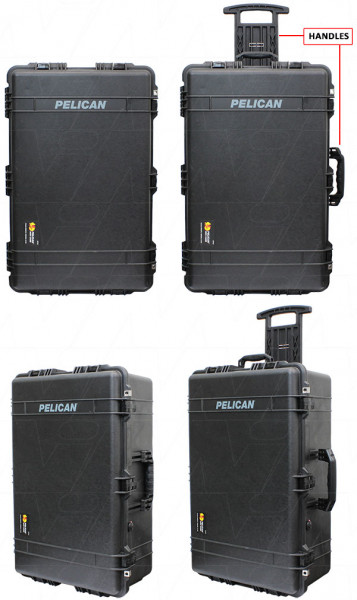

Self Contained Lithium Battery in Ruggedised Pelican Case

The LIBM-ESS252100 is a self-contained 25.2V Lithium Ion battery pack mounted in a high quality and environmentally resistant Pelican case:- IP66 rated with wheels for easy transportation and protection of a high power pack of this size.

This bespoke build provides a customised power output of up to 100Ah (2520Wh).

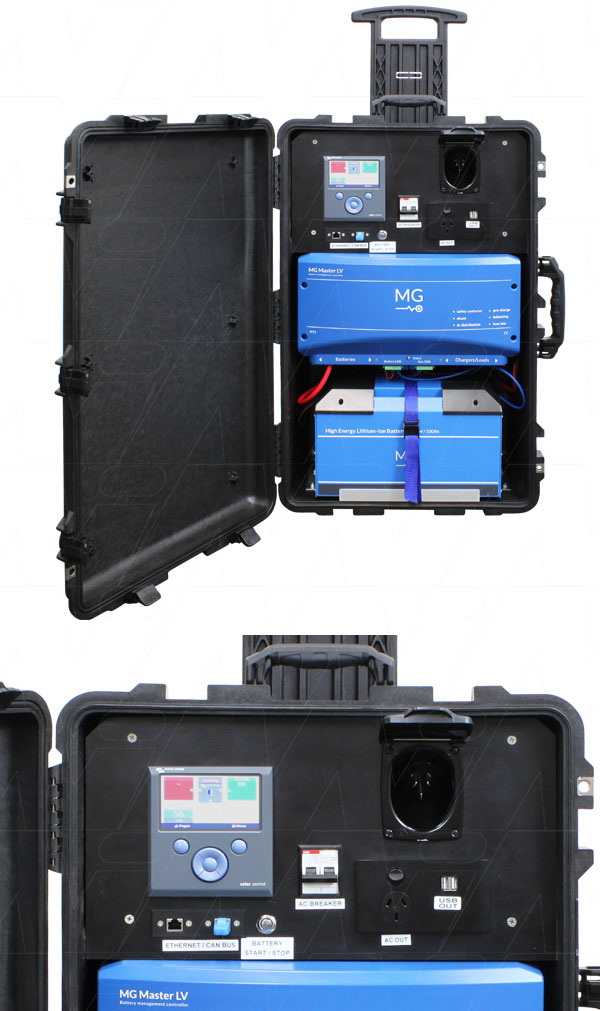

Internally, the LIBM-ESS252100 features an integrated MG Energy Lithium Ion battery and MG Energy battery management controller system, with a Victron Energy Multiplus 24/500-10 Charger/Inverter that you can monitor using the Victron Energy Colour Control GX display panel.

Additional features include:

  • Switch board panel with input and output connectors
  • MCB/RCD circuit breaker for AC output
  • Ethernet connection port
  • CAN connection port. NMEA 2000 compatible
  • Remote control over VRM (online portal)
  • Bluetooth connectivity to mointor over smartphone
  • Configurable protection limits and alarms

Input:

  • AC Input 187-265 VAC @ frequency 45-65Hz Power factor:1
  • Minimum generator size 2kVa.

Outputs:

  • Max AC power @25°C: 500W continuous.
  • Max. Current: 2A AC
  • USB Charger: Dual/10W each port.




Product Code: LIBM-ESS252100
