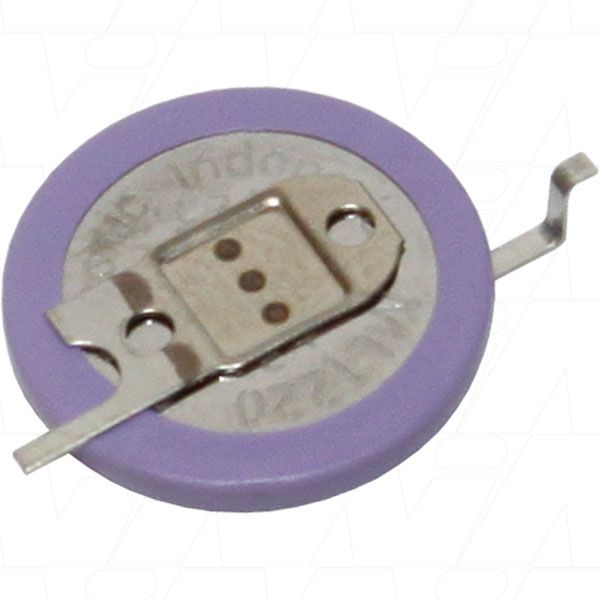

ML1220/F1AN ML1220/F1AN Panasonic Rechargeable Lithium Coin Cell Battery with opposite direction solder tags

$15.00

Product Code: ML1220/F1AN

Product Information

DescriptionML1220/F1AN Panasonic Rechargeable Lithium Coin Cell Battery with opposite direction solder tags
ApplicationMemory Back Up (MBU)
ChemistryLithium Manganese
Voltage3V
Nominal Capacity17mAh
Watt Hour0.5Wh
TerminationPCB surface mount
Width12.5mm
Height2mm
Weight0.8g
Brand



The Panasonic 'ML' series of rechargeable lithium coin type batteries provide the following features and solutions:

Features

  • Stable Operating Voltage of 2.5V.
  • Charging possible with 2.8V. For charging information please select datasheet 3 below
  • Low self-discharge rate and long life. Self-discharge rate : less than 2% a year at room temperature.
  • Charge/Discharge Characteristics (discharge depth of 20%) 500 cycles
  • Usable over a wide temperature range.
    Operational temperature range : -20oC to +60oC (-4oF to +140oF )
    Consult Master Instruments P/L when using batteries at temperatures exceeding the -20oC to +60oC (-4oF to +140oF ) range.
  • UL recognition (File No. MH13421)

Applications

  • memory backup power source for Note-PC, cellular phone, DSC and camcorder.
  • electronic keys for automobiles (keyless entry)
  • memory backup power source for fire alarm

Others

  • Available to meet customer's package requirements (multiple cell, with tabs, with connectors, etc)
  • Use nickel-plated phosphor bronze or stainless steel for terminal materials to make contact with the batteries.
