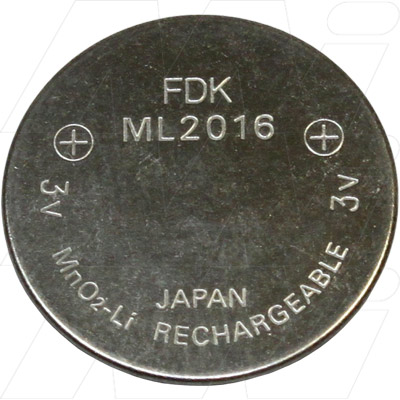

ML2016 FDK Rechargeable Lithium Coin Cell Battery

$12.00

Product Code: ML2016

Product Information

DescriptionML2016 FDK Rechargeable Lithium Coin Cell Battery
ApplicationMemory Back Up (MBU)
ChemistryLithium Manganese
Voltage3V
Nominal Capacity30mAh
Watt Hour0.1Wh
Width20mm
Height1.6mm
Weight1.8g
Brand



The FDK 'ML' series of rechargeable lithium coin type batteries are manufactured in Japan using a manganese composite oxide as cathode material and lithium aluminium alloy as the anode material.

This advanced series of batteries provide the following features and solutions:

Features

  • Stable Operating Voltage of 2.5V.
  • Charging Possible with 2.8V.
  • Low self-discharge rate and long life. Self-discharge rate : less than 2% a year at room temperature.
  • Charge/Discharge Characteristics (discharge depth of 20%) 500 cycles
  • Usable over a wide temperature range.
    Operational temperature range : -20oC to +60oC (-4oF to +140oF )
    Consult FDK though the distributor - Master Instruments P/L when using batteries at temperatures exceeding the -20oC to +60oC (-4oF to +140oF ) range.
  • UL recognition (File No. MH13421)

Applications

  • memory backup power source for Note-PC, cellular phone, DSC and camcorder.
  • electronic keys for automobiles (keyless entry)
  • memory backup power source for fire alarm

Others

  • Available to meet customer's package requirements (multiple cell, with tabs, with connectors, etc)
  • Use nickel-plated phosphor bronze or stainless steel for terminal materials to make contact with the batteries. Also, for stable contact conditions, several N of contact pressure are recommended for the contact.

Product Code: ML2016
