XTAR - 100-240VAC 12VDC to 5VDC input independent channel 1-2 cell lithium ion battery charger.

$29.00

Manufacturer: Xtar

Product Code: MP2S

Product Information

Description100-240VAC (World Voltage) / 12VDC to 5VDC input independent channel 1-2 cell lithium ion battery charger.
BrandXTAR
Width59.5mm
Height29.5mm
Length/Breadth/Depth49.5mm
Weight32g
Comments

100-240VAC (World Voltage) / 12VDC / 5VDC input independent channel 2 cell lithium ion battery charger.

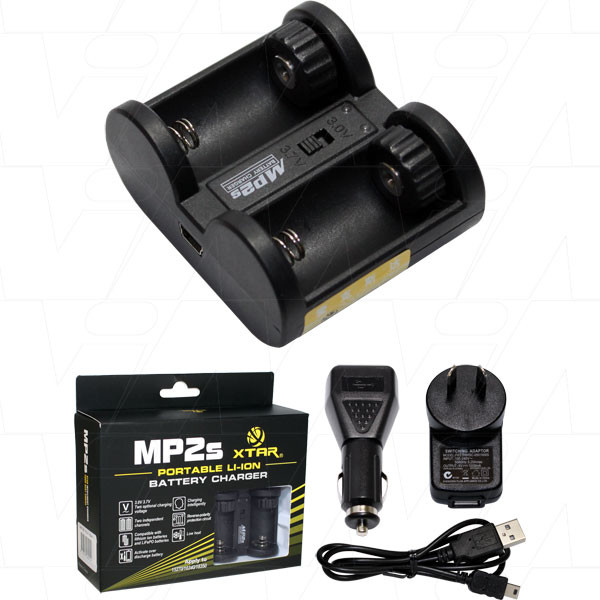

  • Comes with SAA, MEPS approved 100-240VAC (world voltage) to 5VDC input power adaptor, 12VDC to 5VDC input cigarette light connection car plug and 5VDC input USB cable.
  • Single cell charger for charging one or two 3.6V/3.7V lithium ion cells in sizes 16340, 15270, 18350 and 3V rechargeable CR123A & CR2 batteries commonly used in LED torches & other devices.
  • Independent circuits are used for the longer cells with 2 x screw in adaptors supplied for charging shorter cells. Extra Screw in adaptors also available.
  • Manual switch for charging either 3.6V/3.7V lithium ion cells or 3V rechargeable CR123A/CR2 batteries. N.B. Switch must be in the correct position for the cell type to be charged. Failure to do so could lead to damage of the equipment & possible cell explosion. Charger is capable of charging 3.2V LiFePO4 cells typeK2LFP123A on the 3.0V switch setting.
  • Charge re-activation if cell voltage drops below 4.0V if cells left in the charger to keep ready for use (3.6V/3.7V cells only).
  • Algorithm based CC/CV charging system with reverse polarity & overcharge protection.
    • CC charging rate 250mA
    • CV cut-off current <65mA



Product Code: MP2S
