XTAR MC2 USB Input Automatic Two Channel 1-2 Cell Lithium Ion Battery Charger

$17.00 $15.00

Manufacturer: Xtar

Product Information

DescriptionXTAR MC2 USB Input Automatic Two Channel 1-2 Cell Lithium Ion Battery Charger
Width40mm
Height32mm
Length/Breadth/Depth92mm
Weight42g
Brand

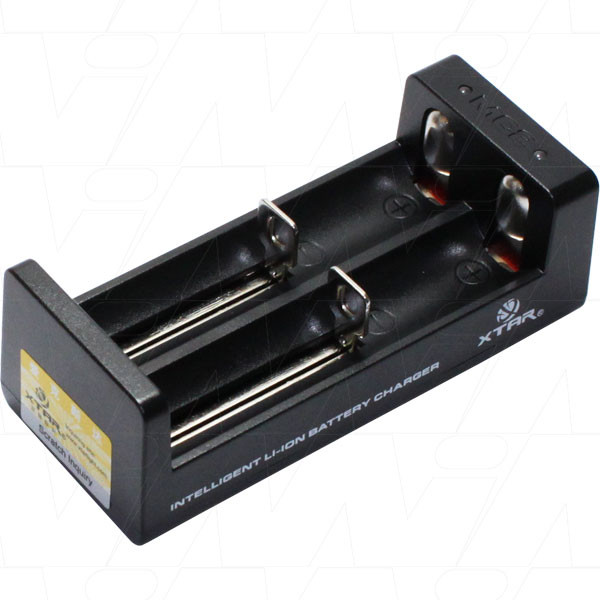

The XTAR MC2 is a two channel (1-2 cells) fully automatic lithium ion battery charger. Powered by the included 5VDC input USB cable the charger includes the following features:

  • Two cell charger for charging one or two 3.6V/3.7V lithium ion cell in sizes 14500, 14650, 16340, 17500, 17670, 18350, 18500, 18650, 18700, 26650.
  • Sliding contacts for firm contact with battery during charging and LED status indicators per channel.
  • Algorithm based 3 stage TC/CC/CV charging system with 0V discharged cell wake-up function, soft charge start followed by constant current then constant voltage charging.
  • Reverse polarity, short circuit & overcharge protection.
  • IC Temperature monitoring.
  • Intelligently adjusts current options depending on input power:
    • CC (constant current stage) charging rate with 5V 1.0A input = 500mA (±10mA).
    • CC (constant current stage) charging rate with 5V 0.5A input = 250mA (±10mA).
  • CV (constant voltage charging stage) 4.2V (±0.05V) cut-off current <40mA.
  • Compact, low heat design with fireproof ABS material.
  • Overheat protection, reverse polarity and short circuit protection.
  • 2 year repair warranty (when used according to specification & in normal conditions).

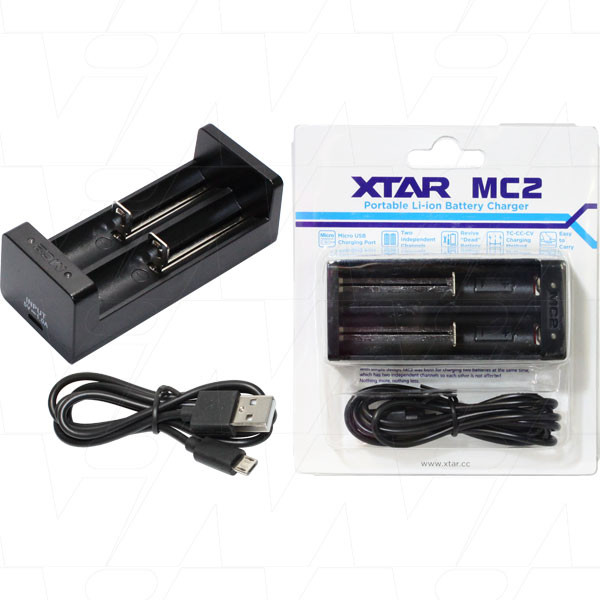

MC2 package includes:

  • MC2 charger
  • USB cable
  • Manual and warranty card

Product Code: MC2
